Absima mini

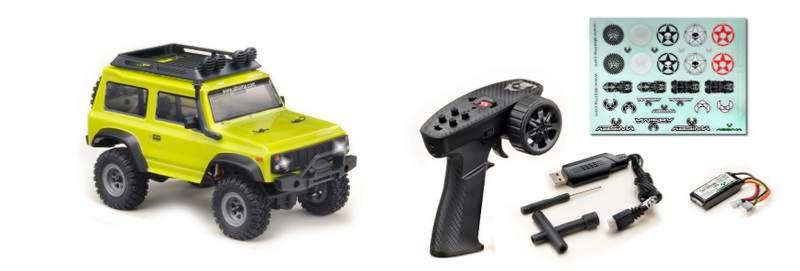

The ABSIMA 1/24 Scale RTR Mini
Crawler brings unmatched performance to the Micro Scale world with a
host of details including a chassis mounted servo, waterproof
electronics, lithium battery and a 2.4GHz remote control.
The vehicle
features a unique transmission designed to produce incredible torque at
low speeds to deliver a controlled crawling experience.
.
Despite its compact size, this is
a rugged off-road vehicle with features normally only found on much
larger vehicles. A multilink chassis, fully locked differentials,
telescopic driveshafts, a 3-stage high-performance transmission and, of
course, 4WD all-wheel drive ensure top performance.
The
wheels have an internal beadlock design with tires made of a super-soft
rubber compound for excellent grip. Spring shocks allow for
ultra-articulated performance, while the anodized aluminum chassis frame
maintains chassis rigidity. Add to this a "Drag/Mountain Brake" to
easily stop even on the steepest slopes.
The waterproof (PPX4) 2-in-1
speed controller/receiver unit is powered by a 360mAh LiPo battery that
provides up to 45 minutes of runtime on a single charge. The battery is
charged by a special USB charging cable. The charging time is about 30
minutes.
But this little one offers more than just power. This
mini crawler offers a great scale appearance while being an ideal base
to make personalized adjustments. Whether you want to crawl indoors,
outdoors, or just want to own a scale micro-size RC car, this vehicle
offers it all on a powerful, affordable, and upgradeable platform with
the power needed to tackle the track.
There are several
tuning parts available for customization - for example, HD steel
driveshafts with chrome finish which are very heavy and sturdy for
better traction due to their low center of gravity. Also available are
aluminum shock absorbers, special weights for the wheels and also
unpainted bodies for your own design ideas.
FEATURES:
- Scale 1:24
- 4WD (all-wheel drive)
- 2.4GHz remote control system (digital, proportional)
- Aluminum anodized ladder frame chassis
- "High Torque" gearbox, reduction 104:1
- 88T / 030 brushed motor
- 2-in-1 speed controller/receiver unit
- Chassis-mounted servo (waterproof)
- Fully locked differentials (front & rear)
- Telescopic UJ driveshafts
- Detailed Lexan body with add-on parts and spare wheel
- LED lighting (front & rear)
- Independent suspension with shock absorbers
- Tires made of super soft rubber compound with aggressive tread pattern
- Wheels with internal beadlock design
- Waterproof electronics
- Driving time: approx. 45 minutes
TECHNICHAL DATA:
- Speed controller 2-in-1 ESC/RX unit, PPX4, 10A/50A
- Remote control: 2.4GHz, 4-channel
- Steering servo: 1kg actuating force, waterproof
- Motor: 030 / 100T
- Gear ratio: 104:1
- Battery: LiPo 7.4V/2S 360mAh
- Battery connector system: Molex 2-pin
- Charger: USB fast charger (7.4V; 1000mAh)
- Wheelbase: 121mm
- Ground clearance: 25mm
- Track width v/h: 100mm
- Length: 215mm
- Height: 120mm
- Width: 104mm
- Weight: approx. 250g
- Wheels: 18x45mm
